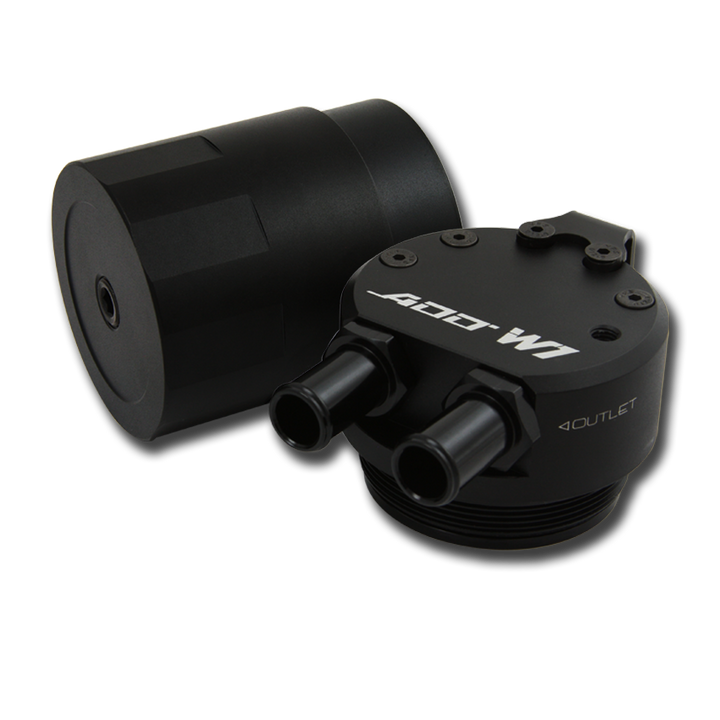

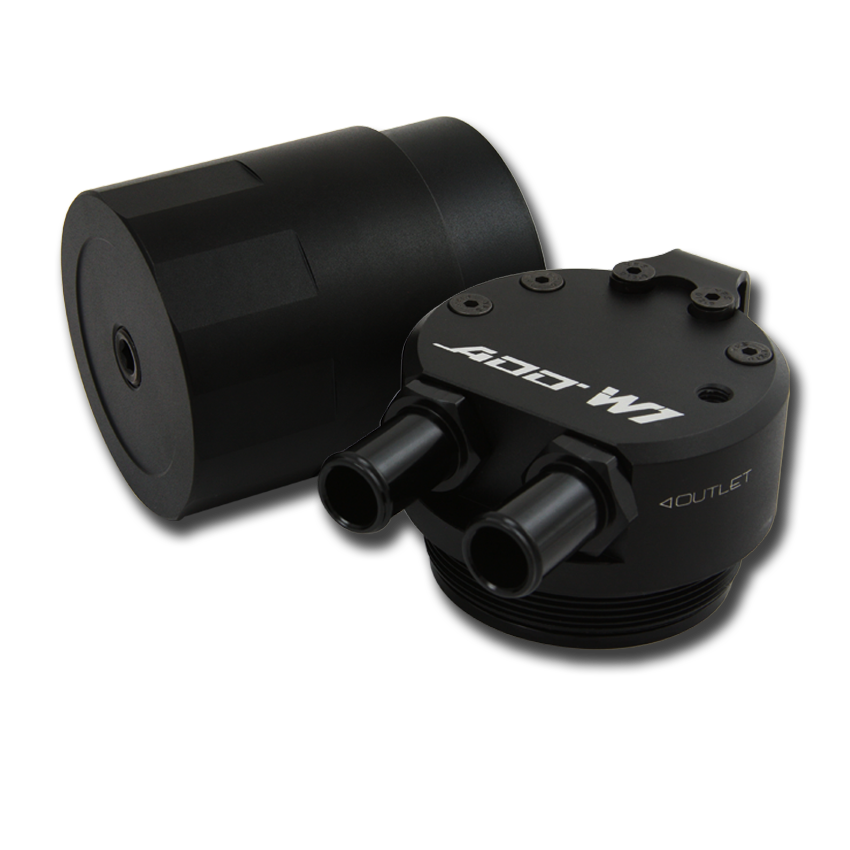

Features / Oil catch can
Patented (US D870,785 S / US D870,786 S)
- Direct fit Kit (Custom Bracket,Fitting,Hose)
- Includes pre-cut high-performance vacuum hose
- Easily installed utilizing the supplied OEM factory fittings

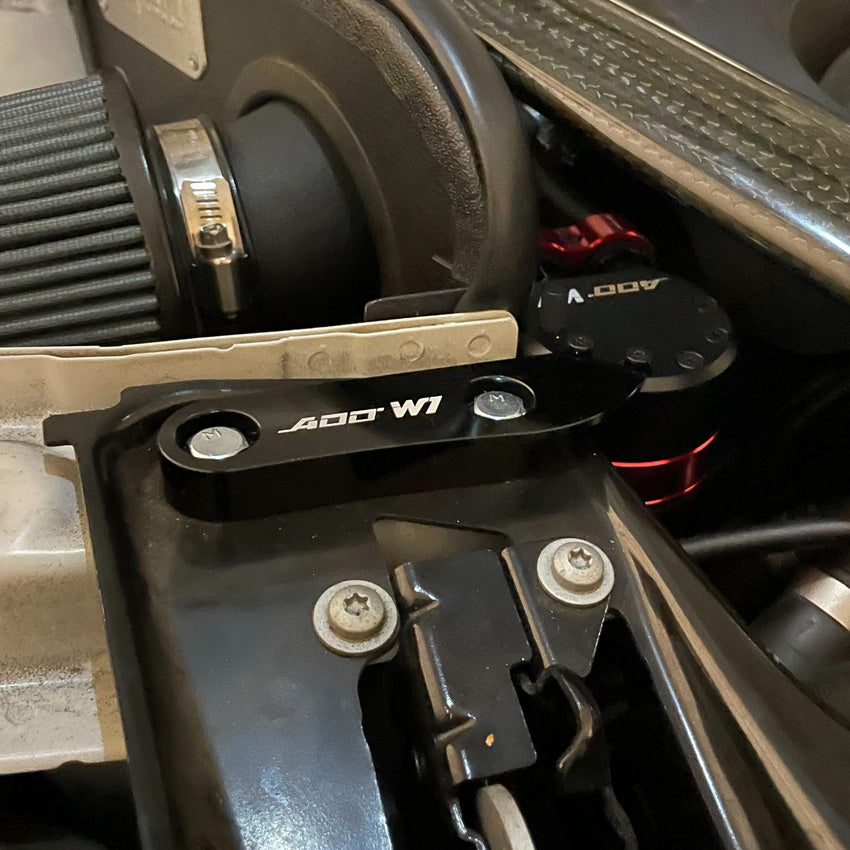

- Includes vehicle Specific Mounting Bracket & Screws
- Closed loop system in-line with the PCV system to separate oil particles
- Constructed with high-grade Lightweight 6061 Aircraft Aluminum
- Easy-drain NPT plug / Remote Quick Drain Valve (optional)
- capable of capturing up to 150ml of Oil
- Customizable color insert rings available in 8 different colors
- Available in Carbon fiber / reduces weight / improves engine bay
- size 4.30" high x 2.50" diameter
- Limited Lifetime Warranty
Features / TRIPLE Twister Chamber
- ADD W1 V3 Special engineered TRIPLE Twister Chamber to trap more Oil
- Internal Baffle TRIPLE Twister chamber filter system
- Filter and can are fully serviceable
- Internal baffle 3 stage chamber filter system
- High-flow TRIPLE Twister Chamber without affecting PCV/CCV pressures filter
- Effectively raises the octane
- increases engine performance from cleaner inlet air
- Prevents oil buildup in the intake, intercooler, throttle body, etc.
The ADD W1 Oil Catch Can is crafted by our team of engineers who understand the dangers of the oil particles from the PCV/CCV that transfers back to the air intake system. It features dual ports and is easy to install on the PCV/CCV systems. The revamped design boasts an industry grade twister baffled filter that helps to trap contaminants and filter moisture as well as oil residue. All the oil residue gets transferred to the bottom of the can ensuring keeping the intake system remarkably clean.
Unlike other air-oil-separator systems in the market, our oil catch can is not heated which allows all the blow-by air to condense in the can itself. Moreover, a regular air-oil-separator system drops the blow-by back to the oil pan, whereas our oil catch can keeps the blow-by and all the contaminants out of the engine invariably.
Although, every oil catch can does the job of trapping contaminants, but only a well-designed one ensures that the intake system remains clean for a long time and improve the overall performance of the tuned vehicle.
ADD W1 Oil Catch can. catch the oil and moisture in the blow-by gas that causes carbon and sludge build-up in the intake system and engine. It's advanced design assures the best performance.keeps the engine clean even under hard driving conditions This twister baffled filter provides the best in filtration oil and moisture,keep the air longer and ensures all the oil drop to the bottom of the can This newly developed twister baffled filter is the only air filtration system of it's kind. unique design twister baffled filter.easy to install, and easy to service
